Complete Guide to ASTM A53 Steel Pipes
What is ASTM A53?
ASTM A53 is an international standard published by ASTM International (American Society for Testing and Materials) for carbon steel pipes. This specification covers both seamless and welded pipes used in a wide range of applications, including water and gas lines, mechanical systems, and structural construction.
By using ASTM-A53 – compliant pipes, product quality and reliability are better ensured, as each pipe is manufactured according to globally recognized technical specifications. This standard delivers consistent performance and enhances safety across various industrial installations and projects.
Types of ASTM A53 Pipes
Based on Manufacturing Process
- Type E (ERW – Electric Resistance Welded)
Produced using electric resistance welding, resulting in welded pipes with consistent and stable joint quality.
- Type F (Furnace-Butt Welded)
Manufactured with a butt-weld process using furnace heat. This type is generally used for low-pressure applications.
- Type S (Seamless)
Made without any welded seams, providing higher strength and making it suitable for high-pressure applications.
Based on Grade Material
- ASTM A53 Grade A
- Lower carbon content → easier to bend, form, and weld.
- Lower tensile strength.
- Suitable for
light-duty applications such as low-pressure water lines, light structural frameworks, and fabrication requiring flexibility.
- ASTM A53 Grade B
- Higher carbon content → results in higher tensile and yield strength.
- More resistant to higher pressure.
- Commonly used in
industrial applications such as oil, gas, fire protection systems, boilers, and heat exchangers.
Comparison of ASTM A53 Grade A vs Grade B
| Aspect | Grade A | Grade B |
|---|---|---|
| Carbon Content | Lower → easier to form/weld | Higher → stronger |
| Tensile Strength | ± 330 MPa | ± 415 MPa |
| Yield Strength | ± 205 MPa | ± 240 MPa |
| Characteristics | Softer, easier to fabricate | Stronger, suitable for high pressure |
| Common Applications | Low-pressure water, light structures | Oil, gas, fire protection, boilers |
Overall, Grade A is better suited for light fabrication work, while Grade B offers superior strength, making it ideal for industrial applications that require maximum durability.

What is Schedule (SCH) in Pipes?

Schedule (SCH) indicates the wall thickness of the pipe. The higher the number, the ticker the pipe wall, the higher its ability to withstand pressure.
- SCH 10
It has a relatively thin wall and is typically used for low-pressure fluid applications.

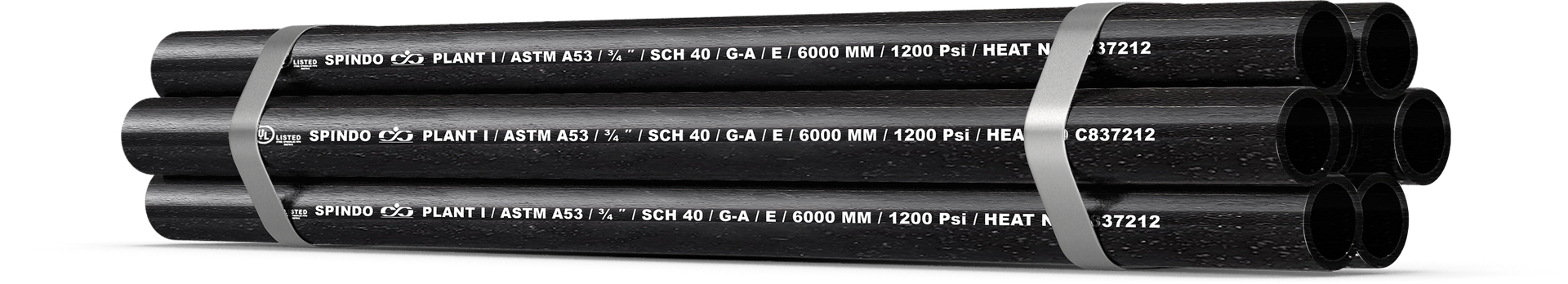

- SCH 40 (Standard Weight)
This is the most commonly used type and is often referred to as the standard pipe. It is widely applied in water systems, gas lines, and fire protection installations.

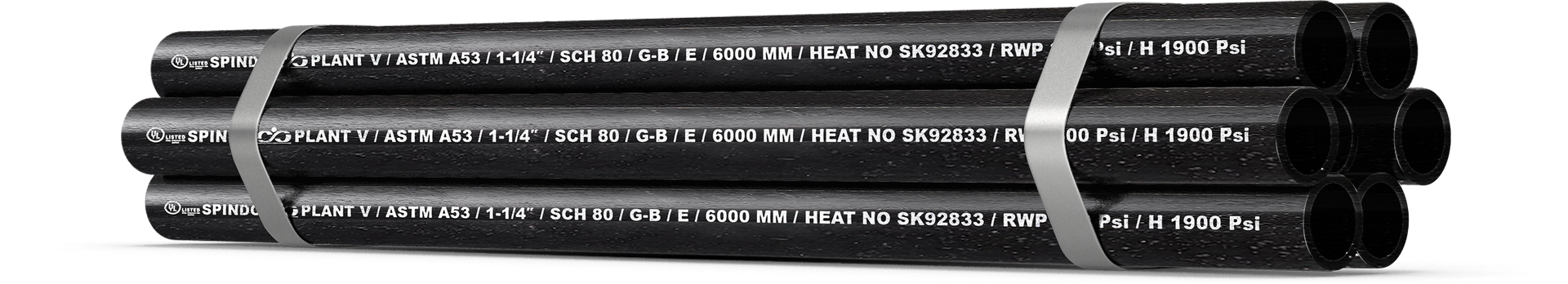

- SCH 80 (Extra Strong)
It has a thicker wall compared to SCH 40, making it better suited for high-pressure applications such as oil and gas systems.
- SCH 160 (XX Strong)
It features a very thick wall and is used in extreme conditions or heavy-duty industrial applications that require maximum durability.
Applications of ASTM A53 Pipes
- Water & Gas: used as pipping for low to medium-pressure fluid distribution.
- Mechanical Systems: suitable for applications such as boilers, considers, and heat exchangers.
- Structural: commonly used for steel frameworks, poles, and scaffolding due to its stability and strength.
- Fire Protection: widely applied in sprinkler pipping systems, often requiring additional certifications such as UL/FM
- Coated Pipes: can be coated with galvanizing, epoxy, or polyethylene to enhance corrosion resistance.
SPINDO and ASTM A53
PT Steel Pipe Industry of Indonesia Tbk (SPINDO) manufactures ASTM A53 pipes with guaranteed quality and global standards. Available in:
- Grade A & Grade B.
- Black steel and galvanized types.
- Complete range of wall thickness options are available from SCH 10, SCH 40, and SCH 80.
SPINDO ASTM A53 pipes are widely used in government, private, and industrial infrastructure projects, both domestically and internationally.
Conclusion
ASTM A53 is a global standard for carbon steel pipes known for its high flexibility and availability in several types, including ERW, seamless, and butt-weld.
- Grade A → easier to fabricate, making it ideal for light-duty applications.
- Grade B → offers higher strength and greater pressure resistance, making it suitable for industrial use.
- SCH 10–160 → provide a full range of wall thickness options to match different pressure and application requirements.
By choosing
ASTM A53 pipes from SPINDO, you receive high-quality products that meet international standards and have been proven reliable in government projects, private sector developments, and various industrial infrastructure applications.
